All-metal variable area flowmeter for liquids and gases
Mike EdwardsProducts flowmeter fluid measurement KDS Kobold Canada variable area

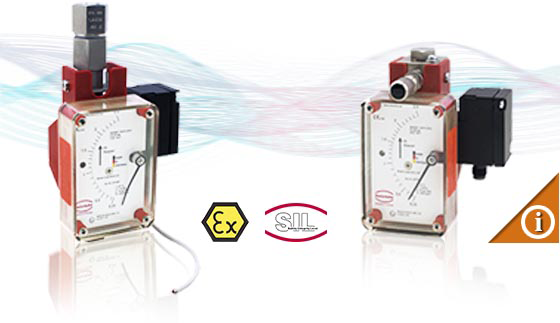

The KDS meter from Kobold Canada is suitable for flow measurement of liquid or gaseous products in pipes. It shows the current flow rate in volume or mass per unit in time.
The fluid flows from bottom to top through the meter tube of the flowmeter.
The float is lifted until an annular gap between the measuring cone and the float is produced which corresponds to the flow.
The forces acting on the float are in equilibrium.
The height of the float resulting from the flow rate is transmitted by the permanent magnet in the float through the magnetic tracking system in a rotation to the pointer axis of the analog indicator unit.
The variable-area flowmeter consists of a stainless steel device with an integrated conical stainless steel measuring tube and a vertically movable float.
The valve for setting the flow rate is built-in (only KDS-K/C) and explosion protection is to BVS 03 ATEX H/B 113.
